The K30 10,000ppm CO2 Sensor Module (030-8-0006) is an industry favorite known for its low-cost, accuracy, long life and low maintenance. It is used in hundreds of HVAC and IAQ products and applications. In addition, this CO2 sensor is easy to program with several output options to meet virtually any OEM project specifications.
Features
- Ideal for residential, commercial, HVAC or IAQ applications
- Simple to install, pre-calibrated and ready-to-use
- 2 analogue outputs, 2 digital outputs
- Proven reliability, low cost, maintenance free
Models

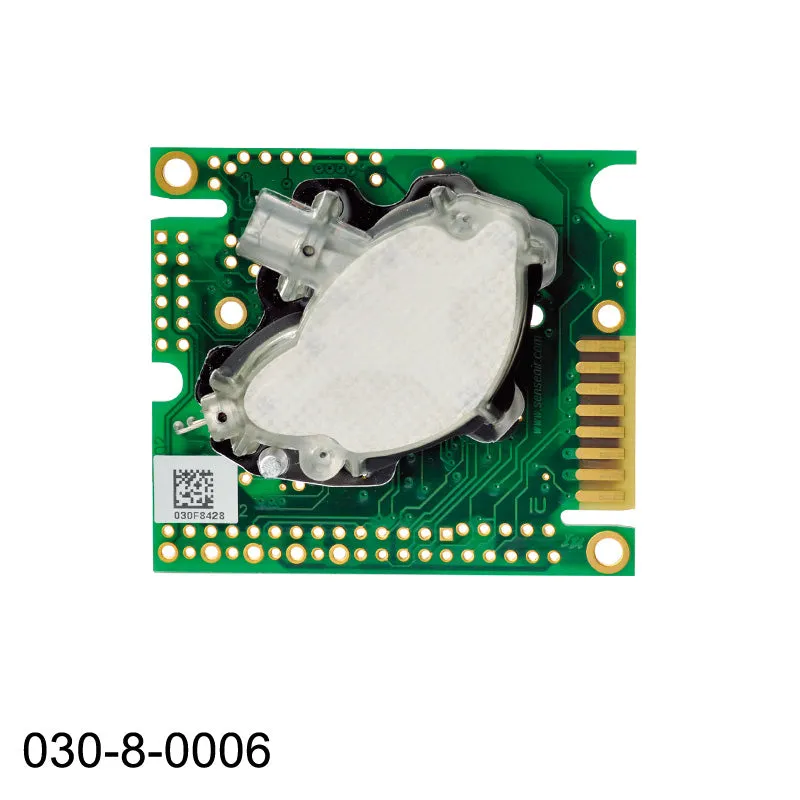

- K30 CO2 Sensor (030-8-0006) - for integration into high-volume OEM products.

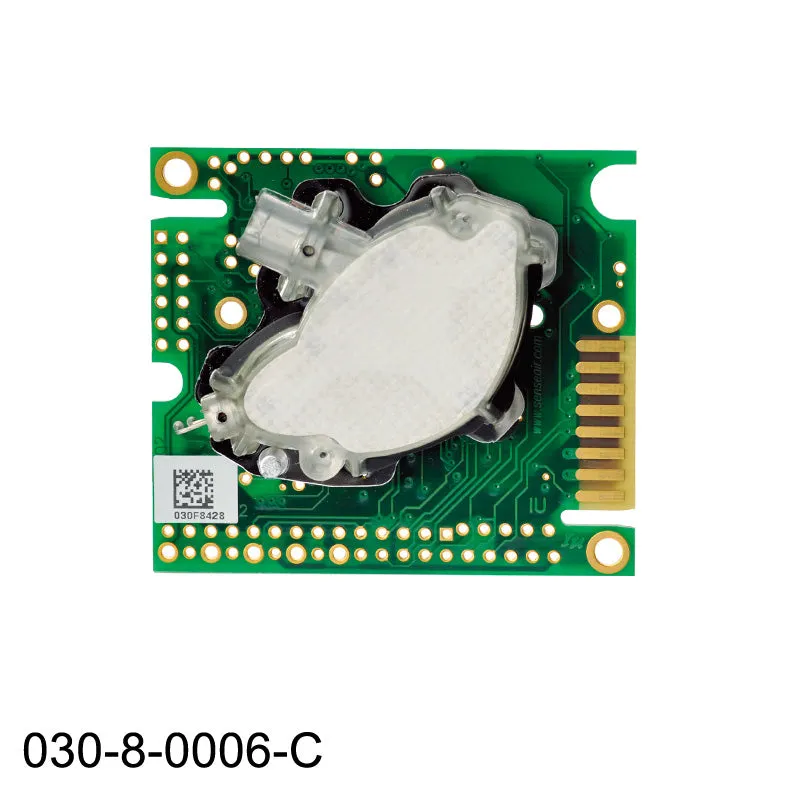

- K30 CO2 Sensor with Custom Outputs (030-8-0006-C) - Customize analog or digital outputs for your application. After ordering, email or fax the and we will pre-configure your sensor’s settings. If the form is not received, your sensor will be delivered with default settings.

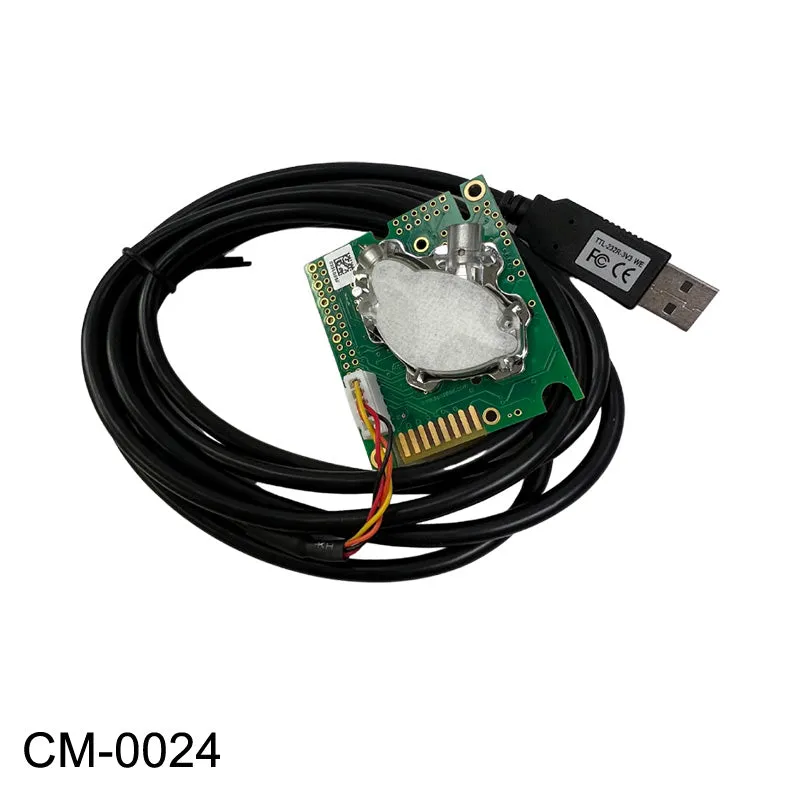

- K30 CO2 Sensor Development Kit (CM-0024) - Easy to use, simply plug the sensor module into your PC via USB. Use our free to measure and graph carbon dioxide in real time or for data logging.
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free to measure and graph carbon dioxide or use our to build your own application or for OEM batch testing/configuration. Order sensors on this page, then .
We recommend that all first-time users purchase either the CM-0024 or CM-200 Development Kit for fastest and easiest results.
Specifications
- CO2 Measurement: non-dispersive infrared (NDIR)
- Measurement Range: 0 – 10,000 ppm (0-5,000 ppm within specifications)
- Rate of Measurement: every 2 seconds
- Automatic Background Calibration (ABC): enabled unless specified
- Response Time Diffusion: 20 seconds
- Response Time Sample Draw: 2 seconds @ .5 l/min tube gas flow
- Warm-up Time: < 1 min. (@ full specs < 15 min)
- Outputs: 2 analog, 2 digital
-
Programmable Range: 0-10,000 ppm (custom configuration required)
- Repeatability: ± 20 ppm ± 1 % of measured value within specifications
- Accuracy: ± 30 ppm ± 3 % of measured value within specifications
- Maintenance Interval: no maintenance required
- Self-Diagnostics: complete function check at startup
-
Dimensions: 51 x 58 x 14 mm (Length x Width x approximate Height)
- Sensor Life Expectancy: > 15 years
Conforms with Standards
- Emission: EN61000-6-3:2001
- Immunity: EN61000-6-2:2001
- Compliant with ANSI/ASHRAE Standard 62.1-2022
- Compliant with RESET grad B
- Compliant with WELL Building Standard® (WELL v2™)
- RoHS directive 2002/95/EG
Electrical / Mechanical
- Power Input: 5.5-14 VDC, stabilized to within 10% (external protection circuits required)
- Current Consumption: 40 mA average
- Sampling Method: diffusion (tube cap optional)
Warranty
- 90 days - See
Custom Output
Instructions:
1. Download the PDF form above and save to your hard drive.
2. Open the PDF and enter your values in the fields. Save.
3. Please specify in the form if you wish the ABC
(Automatic Background Calibration) on or off.
4. Please specify in the form if you want to program the
sensor for communication with RS-485.
5. Email as an attachment to [email protected] and reference your order code.
6. Select K30 1% Custom (030-8-0006-C) and complete your order.
Accessories
- - CM-0024 designed to provide customers with an easy drop-in solution. Includes our free . Sensor sold separately.
- changes the sensor from reading CO2 in the air to a sample draw sensor. Use with a pump, tubing and filters to read CO2 levels in enclosed containers.
- includes all the components you need with a sample draw sensor to create a closed CO2 measurement system.
- . Includes hydrophobic filters, protects the sensor when used in hostile environments.
