EcoFlow 10kWh Power Kit Advanced Modular Power Station
Introducing the world's first fully modular power system built specifically for RVs and tiny homes! The EcoFlow 10kWh Power Kit is a plug and play solution for all your modular power needs. Customizing your power solution is easier than ever with the new EcoFlow Power Kit series.
Main features:- Plug and Play
- Fast & Multiple Charging
- Advanced 48V System
- Integrated & Compact
- Massively Expandable
- Built in Monitor & Control
The Ultimate Plug and Play Solution
Once set up, the EcoFlow Power Kit is plug and play with expandable LFP battery banks, solar panels, and any accessories needed to fit your exact needs. Not an electrician? No need to worry, the EcoFlow Power Kit is built for DIY'ers like yourself and has far less components and wiring than traditional modular power solutions for RVs and tiny homes.
The EcoFlow Power Kit provides a hassle free DIY experience with instant deployment and use. The plug and play functionality means less wiring effort, less wiring mistakes, and more time to enjoy your electronic goods.Fast & Multiple Charging
You might be on the move, but with the EcoFlow Power Kit there are plenty of options for speedy, efficient charging. Out in the sun? The Power Kit supports up to 4800W of solar charge. On the move? You can also use your alternator to charge with 1000W! At a campsite? Take advantage of shore power for a 3000W charging boost! If you find yourself caught short, EcoFlow's smart generators will provide emergency backup power in a pinch.
Advanced 48V System
The 48V design of the EcoFlow Power Kit system is vastly more efficient than traditional 12V systems. This means less heat and less power loss in your RV or tiny home. With a built in Battery Management System, the LFP Batteries are protected from high current, as well as over-voltage. The BMS also ensures a smooth balance of power draw from multiple battery cells in unison, which makes your power solution safer.Integrated & Compact
The Power Hub combines two MPPT (Maximum Power Point Tracker) solar charge controllers, one battery charger (also with MPPT), one DC-DC step-down converter, and an inverter-charger. That is five major components all packed into one compact, efficient device. Less components means less wiring and headaches during installation. Cable management is a breeze with all your needs shrunk down into one, easy to manage hub.
Expandable
The Power Hub is massively expandable with the possibility to connect up to 3 LFP batteries in parallel, with configurations available for 2kWh to 15kWh of energy storage. Choose your own adventure and increase your capacity with ease.
Configurations Available
2kWh - 1 x 2kWh LFP battery
4kWh - 2 x 2kWh LFP battery
5kWh - 1 x 5kWh LFP battery
10kWh - 2x 5kWh LFP battery
15kWh - 3x 5kWh LFP battery
Monitor & Control
The EcoFlow Power Kit Console provides complete control over your power solution. Monitor any and all power consumption and gain wireless control of your power system from a distance with the EcoFlow App! The intuitive interface is easy to use and built for any power need you might have. It enables optimization and configuration that has not been seen before with such a small footprint.
Configurations Available

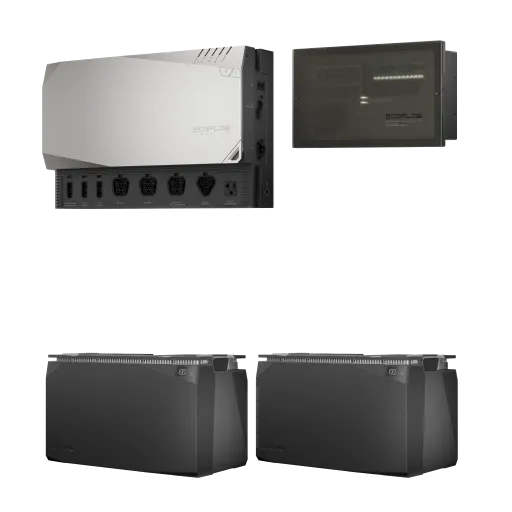

Get Set Kit Includes: 2 x Battery Power Hub Cable Pack
Prepared Kit Includes: 2 x Battery Power Hub Cable Pack Smart Distribution Panel Mounting Strap

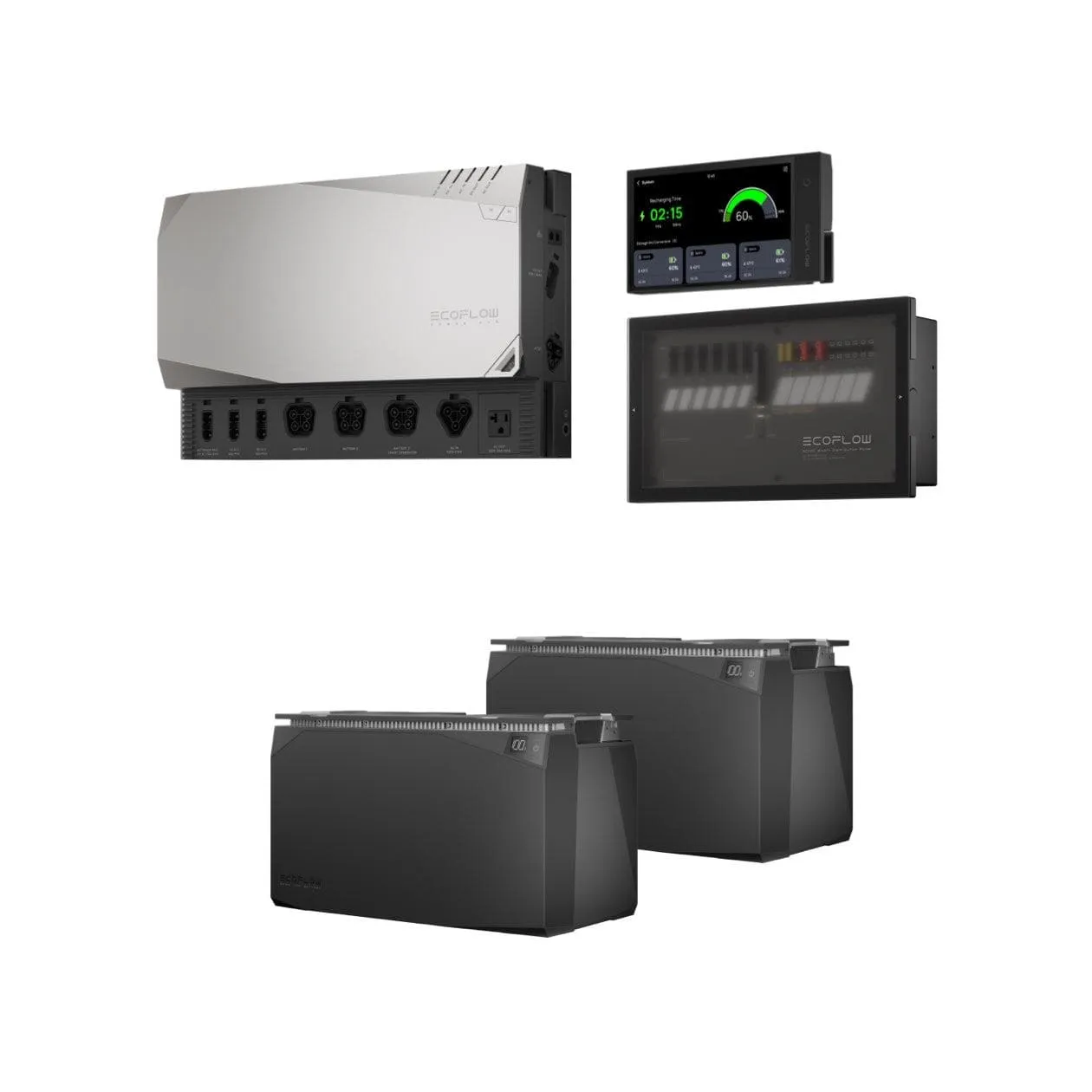

Independence Kit Includes: 2 x Battery Power Hub Cable Pack Smart Distribution Panel Mounting Strap Power Kit Console

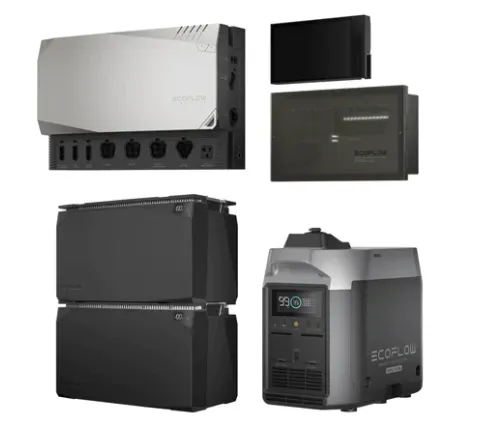

Supreme Kit includes: 2 x Battery Power Hub Cable Pack Smart Distribution Panel Mounting Strap Power Kit Console Dual Fuel Generator Smart Generator Adaptor -

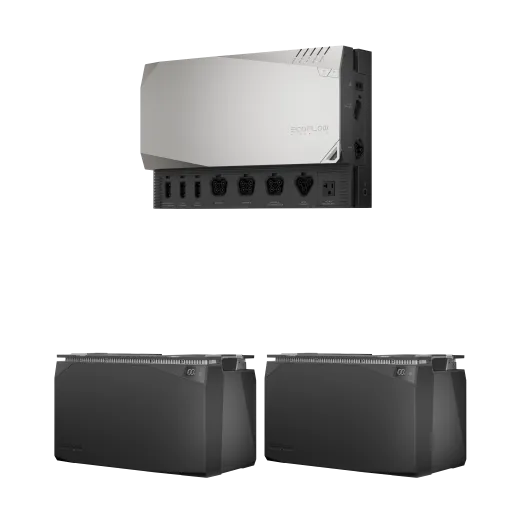

- 1x EcoFlow Power Hub
- 2x 5kWh LFP Battery
- 1x Cable Pack
- 1x Smart Distribution Panel (Only with Prepared and Independence Kits)
- 1x Mounting Strap (Only with Prepared and Independence Kits)
- 1x Monitor (Only with Independence Kit)
- 1x Smart Generator (Only with Independence Kit)
-
Warranty:
5-year warranty on all Power Kit Components, Cables and Accesories have 1-year warranty
Capacity:
10 kWh
Power Hub:
Net Weight - 31 lbs.
Dimensions (in.) - 11.8 x 18.9 x 5.5 (HxWxD)
AC Main Output/Frequency - Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz
DC Main Output - 13.6V/70A 1000W Max; 26.4V/60A 1600W Max
AC Main Input - X-Stream Fast Charging 3000W Max, 30A Max
AC Main Input Voltage/Frequency - 100-120V, 50Hz/60Hz
Solar Charging Input - 15-150V 30A, 1600W Max
Alternator Charging Input - 13V-60V, 60A, 1000W Max
Operating Temperature - -13°F - 140°F
Discharge Temperature - -13°F - 140°F
Charge Temperature - -13°F - 140°F
Storage Temperature - -13°F - 140°F
Tests and Certifications - UL Standard, FCC, ICES
Wi-Fi - Yes
Bluetooth - Yes
Mobile App - Yes
5kWh LFP Battery:
Capacity - 5120Wh (51.2V, 100Ah)
Cell Chemistry - Lithium Iron Phosphate
Cycle Life - ~3500 Cycles up to 80% Capacity
Net Weight - 90 lbs
Dimension (in.) - 11.8 x 19.7 x 10.2 (HxWxD)
Protection Level - IP54
Tests and Certifications - UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Storage Temperature - -4°F - 140°F
Operating Temperature - -4°F - 140°F
Power Kit Console:
Touch Screen (Diagonal Measurement) - 7 inch (6 x 3.4 in.) (WxH)
Power Supply Voltage - 12 VDC
Operating Temperature - -4°F - 140°F
Dimension (inch) - 4.5 x 8 x 0.9 in. (HxWxD)
Net Weight - 1 lb
Tests and Certifications - UL Standard, FCC, ICES, CE, UKCA, E-Mark, RCM, TELEC, KCC
AC/DC Smart Distribution Panel:
AC Main Input - 30A Max, 120V, 3600W
DC Main Input - 70A Max
AC Output - 6 AC Positions, 20A Max each
DC Output - 12 Fused DC Positions (6 Positions controllable via Power Kit Console and App)
Dimensions - 8.3 x 13.9 x 3.9 in. (HxWxD)
Net Weight - 5.7 lbs
Protection Level - IP21
Operating Temperature - -13°F - 140°F
Tests and Certifications - UL Standard, FCC, PSE
Smart Generator:
Dimensions - 23.5 x 11.7 x 18.7 in (HxWxD)
Weight - 62.8 lbs
Type - Inverter generator
Frequency - 60Hz
Rated Voltage - 100~120V/200~240V
Rated Power - 1800W (1900W peak)
DC Output Voltage - 42-58.8V
DC Current - 32A Max
Engine Specs
Model - R80-i
Type - Single cylinder, four-stroke, forced-air cooling, overhead value
Displacement - 79.7cc
Fuel Type - Unleaded gasoline
Fuel Tank Capacity - 4 L / 1.05 gal.
Engine Oil Capacity - 0.38 L / 0.1 gal.
Noise Level (at a 7m distance) - 56~67dB (full load)
Continuous Working Time - 3.5 hrs (full load)
Number of outlets - 4 nominal, 1 30A
Wave Portable AC Unit:
Net weight - 38.58 lbs
Dimensions - 20.39 x 12.2 x 16.38 in (HxWxD)
Wi-Fi - Yes
Bluetooth - Yes
AC Input Voltage/Frequency - 115V 60Hz
AC Input Power - Max 700W
Add-On Battery Power - Max 600W
Solar Charging Input - 11-35V Max 12A Max 200W
Car Charging Input - 12 V/24V Max 8A Max 200W
Ambient Temperature - 5°C ~ 50°C (41°F ~ 122°F)
Cooling Temperature Settings - 16°C ~ 30°C (60.8°F ~ 86°F)
Cooling Capacity - 1200W
Circulation Air Volume - 290m"3"/h
Refrigerant/Amount - R134a/14.1oz
Rated Cooling Power (AC/DC) - 460W/410W
Max. Cooling Power - 600W
Noise - <55dB
No-Drain Function - Yes
Shut Down When Full Function - Yes
