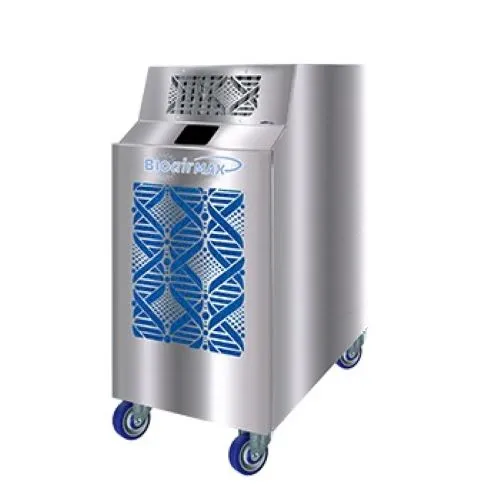

KwiKool BioAirMax KBX1000 Air Scrubber

This top of the line unit effectively reduces airborne pathogens and viruses using four different methods all in one. The KwiKool BioAirMax KBX1000 Air Scrubber is is similar to the other KwiKool models and uses a pre filter, hospital grade HEPA and dual UV-C bulbs but has the added security of Bi-Polar ionization for extra protection against the following pathogens. Reducing them up to 90% in 60 minutes in a 1100 sq ft space with 9 ft ceilings by scrubbing the air 6 times per hour, based on independent lab studies...

Coronavirus
Legionella
Norovirus
Staphylococcus
E. Coli
MRSA

The KwiKool BioAirMax series implements the following four stages of filtration for fast and powerful results in commercial, institutional, or medical applications. Made in the USA and constructed of high quality stainless steel, this unit has industrial strength combined with proven filtration methods needed for stand alone air purification, or to create negative pressure.

Pre filter: Washable, for large particulate such as dirt, hair and pollen
HEPA: 4" thick hospital grade HEPA for 99.97% reduction for particulates down to .3 microns in size such as dust, dust mites, mold, mold spores and other allergens
UV-C: Dual 30 watt UV-C bulbs that eliminates any living organic micro-organisms once they are caught in the filters and exposed for period of time
Ionization: Advanced Needle Point Bi-Polar Ionization to release charged ions which attach to particles that are otherwise too small to capture. They help to break down the molecular make up of those compounds making them easier to absorb or get caught in the filters.

This unit can be ducted and used to remove all contaminated air from a space, such as a hospital room, and then replace it with fresh, purified air. This method is referred to as negative pressure. Or it can be rolled from area to area thanks to its sturdy, heavy duty rolling caters t be used as a portable air scrubber.

Key Features and Benefits

Coverage : With a 1000 CFM motor on high, this unit covers approx 1100 sq ft of space at 6 air exchanges per hour.
Filter Reminders: LCD alarm for timed filter and UV-C light replacement.
Self Diagnosing System : Unit will auto detect any issues, shut itself down and sound an alert. Then it will display a specific code on the screen. Simply look the code up in your manual to find troubleshooting steps.
Built To Last : KwiKool uses stainless steel for the housing and heavy duty casters for the wheels, making it ideal for commercial applications.
Automatic Restart : If unit gets shut off unexpectedly due to power outage, it will power itself back on automatically once restored. All settings will resume exactly as they were prior to power issue.
Create Negative Pressure : The KwiKool BioAirMax KBX1000 Air Scrubber comes equipped with a duct collar designed to attach to the top of your unit. The size of the collar for a 1000 model is an 10” dia. It can also accept an optional 12 inch duct and collar (not included with the unit and is designed for use with additional purchase of ceiling mount kit or 12” ducting).
Fan Speeds : This unit uses quad directional airflow and has 3 speeds, low, medium and high.
Warranty: Limited 1 year manufacturer warranty.
Certifications: ETL and CETL listed to UL and CSA standards.
Made In: All Kwikool Products are Manufactured in Texas, U.S.A.

TECHNICAL SPECIFICATIONS

Hepa Filter: 99.97% down to .3 microns in size
UVC Light Wave Length: UVC 30 Watts / Max 85 Watts x 2
Ionization Technology : Needle Point Bi-Polar
Fan Type (Centrifugal):Direct Drive
Air Flow (CFM): 1000 / 875 / 750 - 3 Speed / Quad Directional
Top Discharge Stainless Flange: 10" / Optional 12"
CK-12S-SS Ceiling Mount Kit (Optional): 12" dia Ceiling Kit purchased additionally
Power Supply : 115V / Single Phase
Current Consumption : 6.04 Amps
Power Consumption : 0.69 KW
Max Circuit Breaker : 20 Amps
Recommended breaker size : 15 Amps
Min / Max Voltage:105 - 125
Power Cord Gauge / Length : 14 AWG / 6 Ft
Plug Type: NEMA 5 - 15
Dimensions: 16.5" W x 22.25" L x 38" H
Weight / Shipping Weight: 90 lbs / 125 lbs
Ceiling Kit Weight: 12 lbs
Total Shipping Weight w/ Ceiling Kit : 137 lbs
Decibels Levels : 63 decibels on high
Safety Certifications: ETL / UL Certified
Fan Motor Overload: Auto Internal
Automatic Restart: Yes
