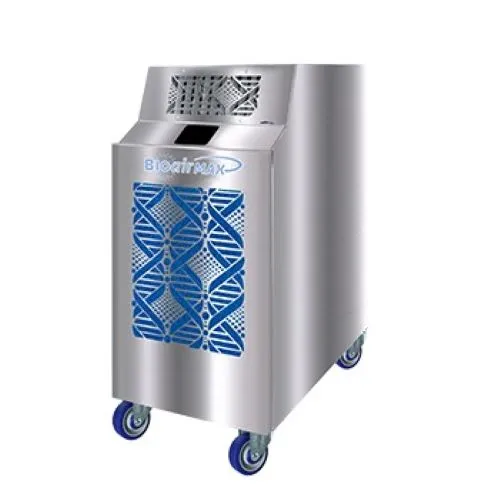

KwiKool BioAirMax KBX1800 Air Scrubber

The KwiKool BioAirMax units are extremely popular with hospitals, universities, retail and other commercial businesses where the quality of your air is of the utmost importance. When you need fast and effective reduction of air pollution, the KwiKool BioAirMax KBX1800 Air Scrubber will deliver results. Whether you need a standalone, portable air scrubber or the need to create negative pressure in your space, this unit does both. Negative pressure is often used in hospital and medical applications.

This unit utilizes four stages of filtration for quick and effective results with its extremely powerful 1800 CFM motor made to provide 6 air exchanges per hour in a 2000 sq ft space. Made in Texas, USA the KwiKool BioAirMax KBX1800 Air Scrubber is built tough with stainless steel for industrial environments. It harnesses the power of the following filters and technology to reduce allergens, particulates, pathogens, germs, bacteria, microorganisms and even mold.

Pre filter: Washable, for large particulate such as dirt, hair and pollen
HEPA: 4" thick hospital grade HEPA for 99.97% reduction for particulates down to .3 microns in size such as dust, dust mites, mold, mold spores and other allergens
UV-C: Triple 30 watt UV-C bulbs that eliminates any living organic micro-organisms once they are caught in the filters and exposed for period of time
Ionization: Advanced Needle Point Bi-Polar Ionization to release charged ions which attach to particles that are otherwise too small to capture. They help to break down the molecular make up of those compounds making them easier to absorb or get caught in the filters.

Based on independent lab studies, this unit was shown to help remove the following pathogens up to 90% in a 60 minute period of time.

Coronavirus
Legionella
Norovirus
Staphylococcus
E. Coli
MRSA

The KwiKool BioAirMax KBX1800 Air Scrubber is the complete solution to air cleanliness.

Key Features and Benefits

Self Diagnosing System : If your unit detects any type of problem, it will set off an alarm and shut itself down by itself. You then refer to the LCD screen for the troubleshooting code, which you easily can look up in your manual to find the solution to the problem.
Automatic Restart : When the power goes out, this unit will automatically turn itself back on once it is restored and resume the same settings it was set on.
Create Negative Pressure : This unit comes equipped with a duct collar designed to attach to the top of your unit. The size of the top discharge stainless flange for a 1800 model is an 12” dia. It will also work with an optional 12" ceiling mount kit (kit and 12" ducting is not included with the unit). filtered room air circulator.
Fan Speeds : This unit offers 3 fan speeds with Quad Directional airflow
Coverage : With a 1800 CFM motor on high, this unit covers approx 2000 sq ft of space at 6 air exchanges per hour.
Warranty: Limited 1 year manufacturer warranty.
Certifications: ETL and CETL listed to UL and CSA standards.
Made In: All Kwikool Products are Manufactured in Texas, U.S.A.

TECHNICAL SPECIFICATIONS

Hepa Filter: 99.97% down to .3 microns in size
UVC Light Wave Length: UVC 30 Watts x 3
Ionization Technology : Needle Point Bi-Polar
Fan Type (Centrifugal):Direct Drive
Air Flow (CFM) at Zero External Static : 1800 / 1675 / 1550 - 3 Speed / Quad Directional
Air Flow (CFM) With One Opening Closed : 1600 / 1375 / 1250 - 3 Speed / Quad Directional
Top Discharge Stainless Flange: 12"
CK-12S-SS Ceiling Mount Kit (Optional): 12" dia Ceiling Kit purchased additionally
Power Supply : 115V / Single Phase
Current Consumption : 10.15 Amps
Power Consumption : 0.84 KW
Max Circuit Breaker : 20 Amps
Min Circuit Breaker : 12.87 Amps
Recommended breaker size : 15 Amps
Min / Max Voltage:105 - 125
Power Cord Guage / Length : 14 AWG / 6 Ft
Plug Type: NEMA 5 - 15
Dimensions: 23" W x 26.25" L x 46" H
Weight / Shipping Weight: 135 lbs / 170 lbs
Ceiling Kit Weight: 12 lbs
Total Shipping Weight w/ Ceiling Kit : 192 lbs
Decibels Levels : 69 decibels on high
Safety Certifications:ETL / UL Certified
Fan Motor Overload: Auto Internal
Automatic Restart: Yes
